Description
Technical parameters
| General | ||||

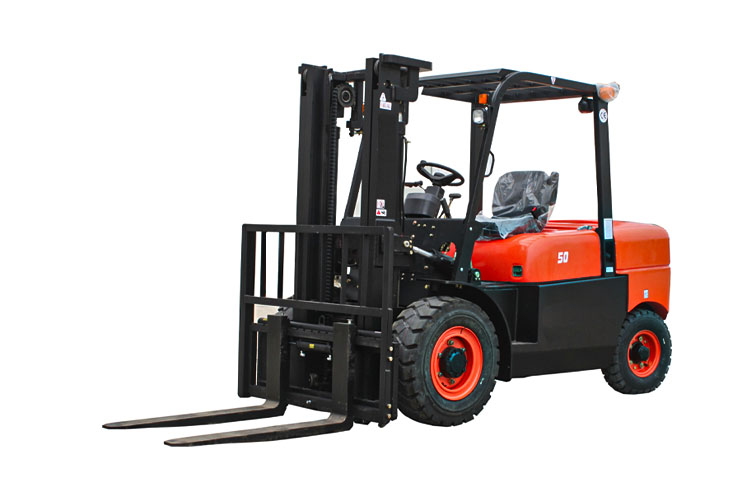

| 1 | Model | CPCD50F | ||
| 2 | Rated capacity | kg | 5000 | |
| 3 | Load center | mm | 500 | |
| 4 | Power type | Diesel | ||
| 5 | Transmission | Hydraulic/Mechanical | ||
| Dimensions | 6 | Lifting height | mm | 3000 |
| 7 | Free lifting height | mm | 150 | |
| 8 | Turning radius | mm | 3000 | |
| 9 | Overall length | mm | 4350 | |
| 10 | Overall width | mm | 1400 | |
| 11 | Overall height (mast lowered) |
mm | 2330 | |
| 12 | Overall height (mast raised) |
mm | 4265 | |
| 13 | Overall height (overhead guard) |
mm | 2330 | |
| 14 | Fork length | mm | 1220 | |
| 15 | Fork width | mm | 150 | |
| 16 | Fork thickness | mm | 50 | |
| Performance | 17 | Max. driving speed (with/without load) |
km/h | 20/24 |
| 18 | Max. lifting speed (with load) |
mm/s | 375 | |
| 19 | Max. traction (with/without load) |
kn | 31/18 | |
| 20 | Gradeability (with/without load) |
% | 15/20 | |
| 21 | Tilting angles (forward/backward) |
° | 6/12 | |
| 22 | Service weight | kg | 6800 | |
| Engine | 23 | Engine model | LR4A3/4JR3 | |
| 24 | Power | kw | 59 | |
| 25 | Rated speed | rpm | 2400 /2200 | |
| 26 | Displacement | L | 4.3 | |
| 27 | No. of cylinder | 4 | ||
| Wheel | 28 | Front overhang | mm | 565 |
| 29 | Wheel base | mm | 2150 | |
| 30 | Front tread | mm | 1180 | |
| 31 | Rear tread | mm | 1190 | |
| 32 | Front tire | 300-15 | ||
| 33 | Rear tire | 7.00-12 | ||
