Description
Basic Technical Parameters

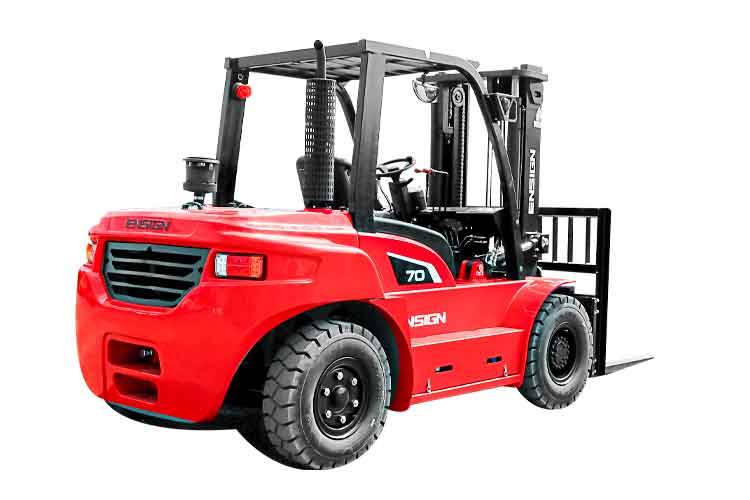

| Model | CPC(D)-G70 | |
| Power Type | diesel | |
| Lift Capacity | (kg) | 7000 |
| Load Center Distance | (mm) | 600 |
| Battery (Voltage/Capacity) | (V/Ah) | 24/100 |
Performance Parameters
| Max. Lift Height | (mm) | 3000 | |
| Free Lift Height | (mm) | 195 | |
| Mast Tilt Angle (front/rear) | (°) | 6/12 | |
| Max. Lift Speed (full load/no load) | (mm/s) | 442/484 | |
| Max. Lowering Speed (full load/no load) | (mm/s) | 360/400 | |
| Max. Travelling Speed (full load/no load) | (km/h) | 22.5/25 | |
| Min. Turning Radius | (mm) | 3400 | |
| Gradeability (full load/no load) | (%) | 20/25 | |
| Max. Traction Force | kN | 70 | |
| Overall weight | (kg) | 9550 | |
